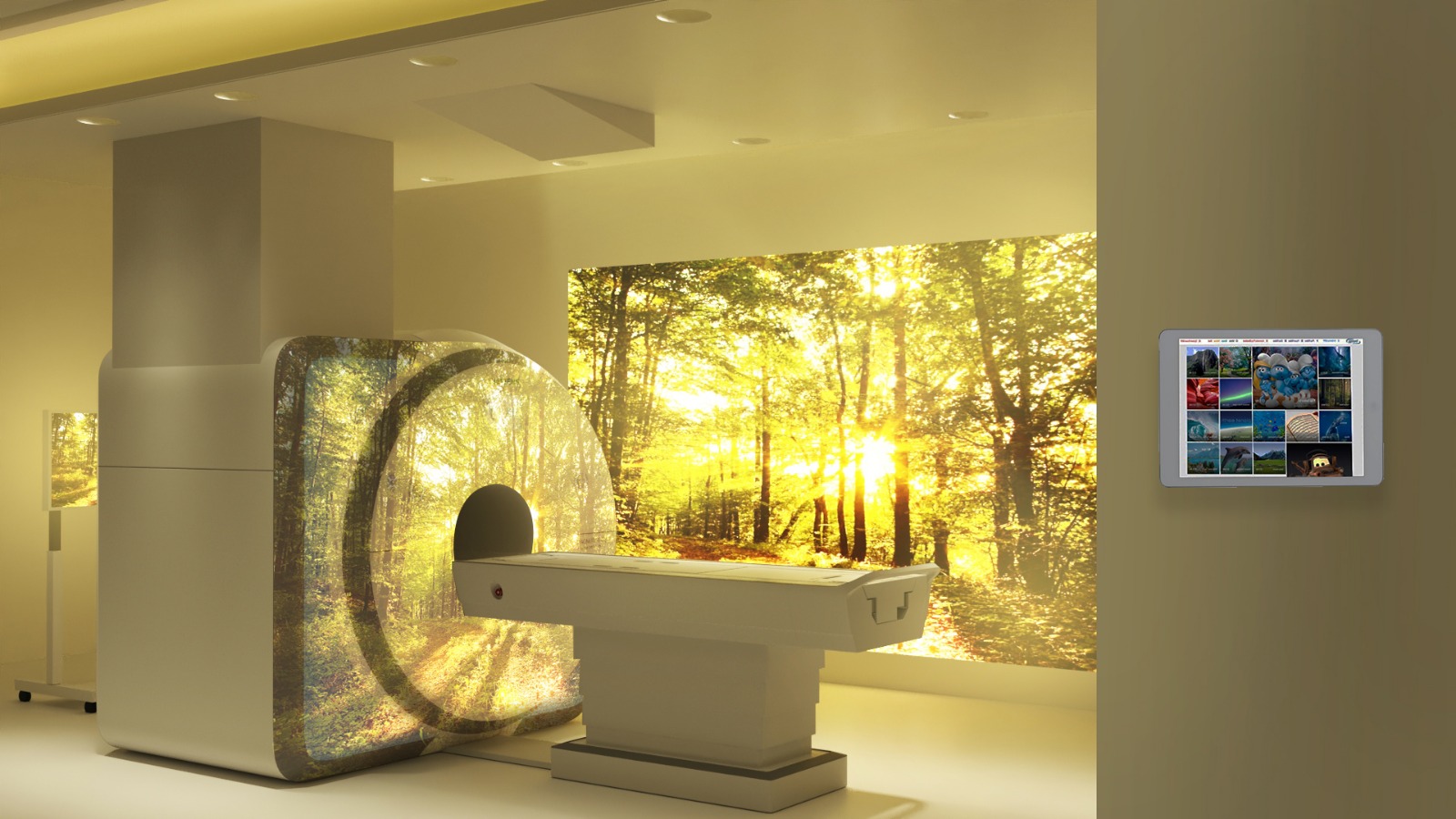

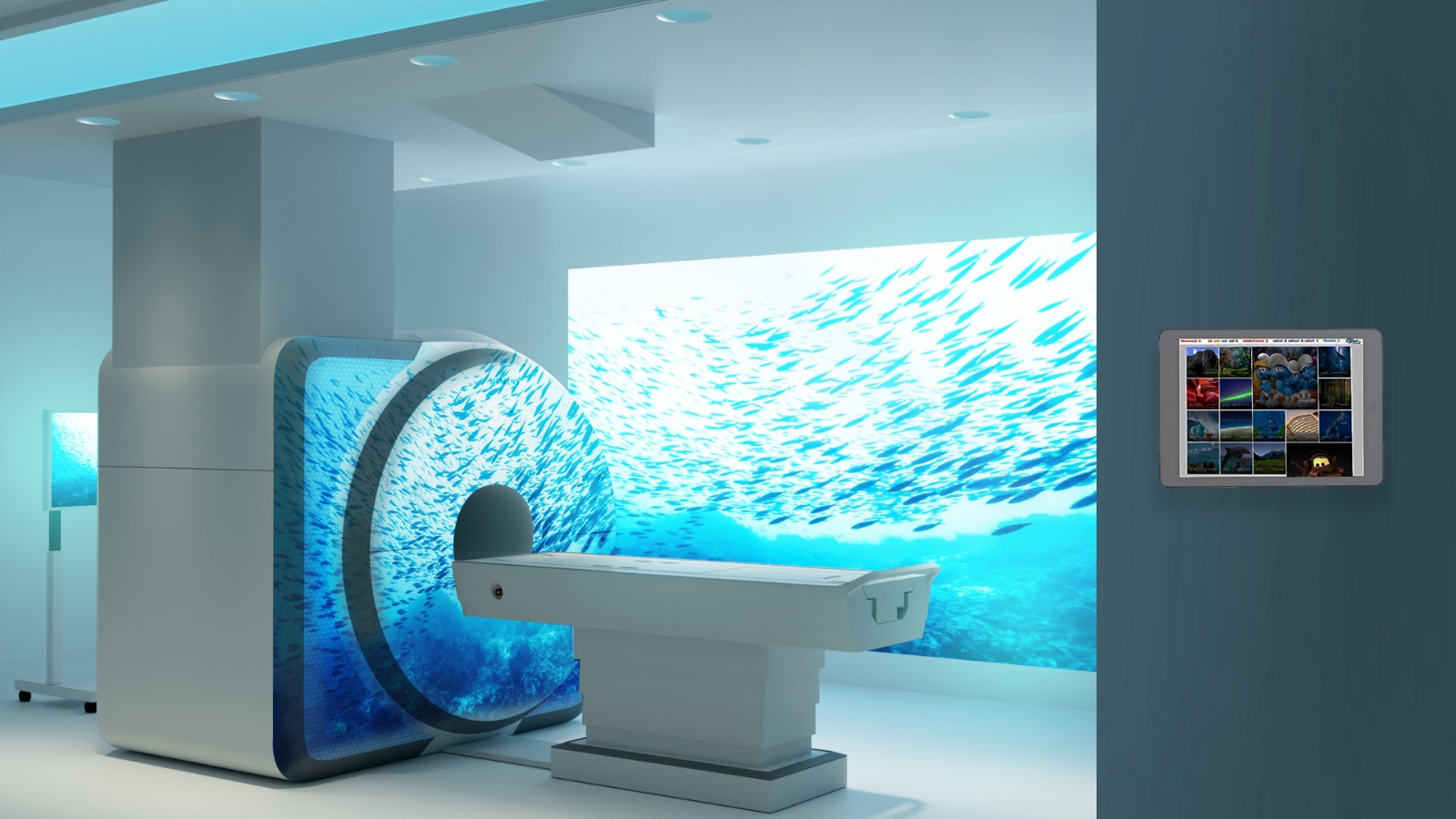

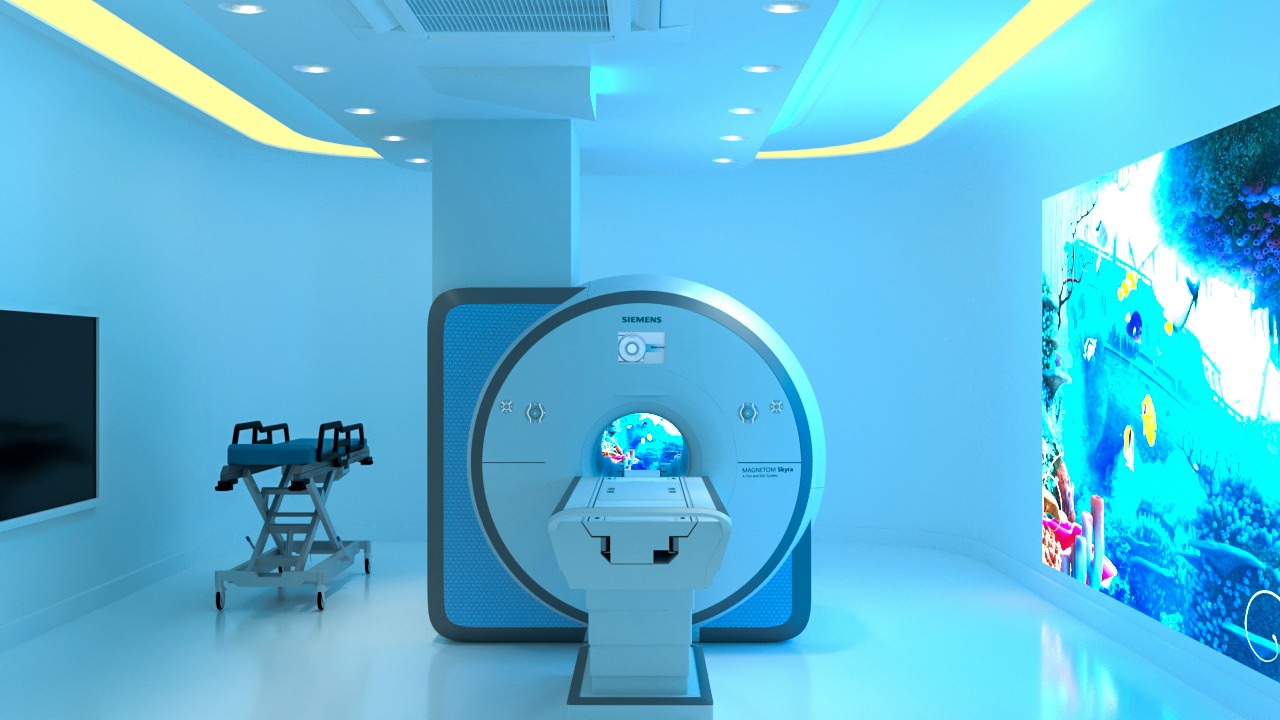

MRI Ambiance System

Category: Ürün Kodu: T-650 Üretici: Troyka Med

MRI Ambiance System includes 6 equipments

  1. Ambiance System Software
  2. MRI Projector
  3. RGB LED Lights
  4. LED Monitor
  5. MRI Sound System
  6. MRI Dome Camera

Detailed information is provided below:

MRI Conditional
ISO 9001
ISO 13485
ISO 13485
SKU: T-650 Category: Tags: ,

Product Description

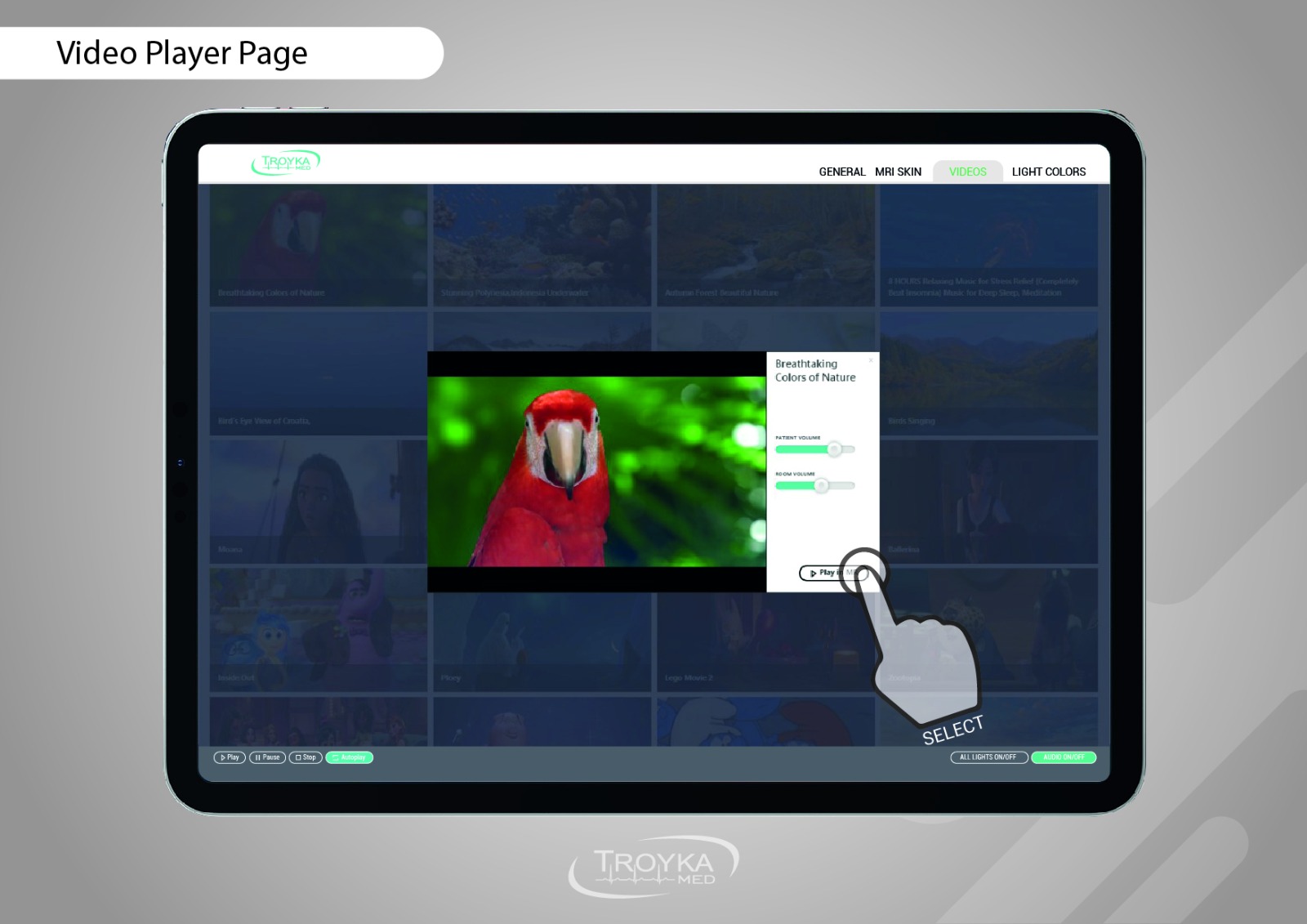

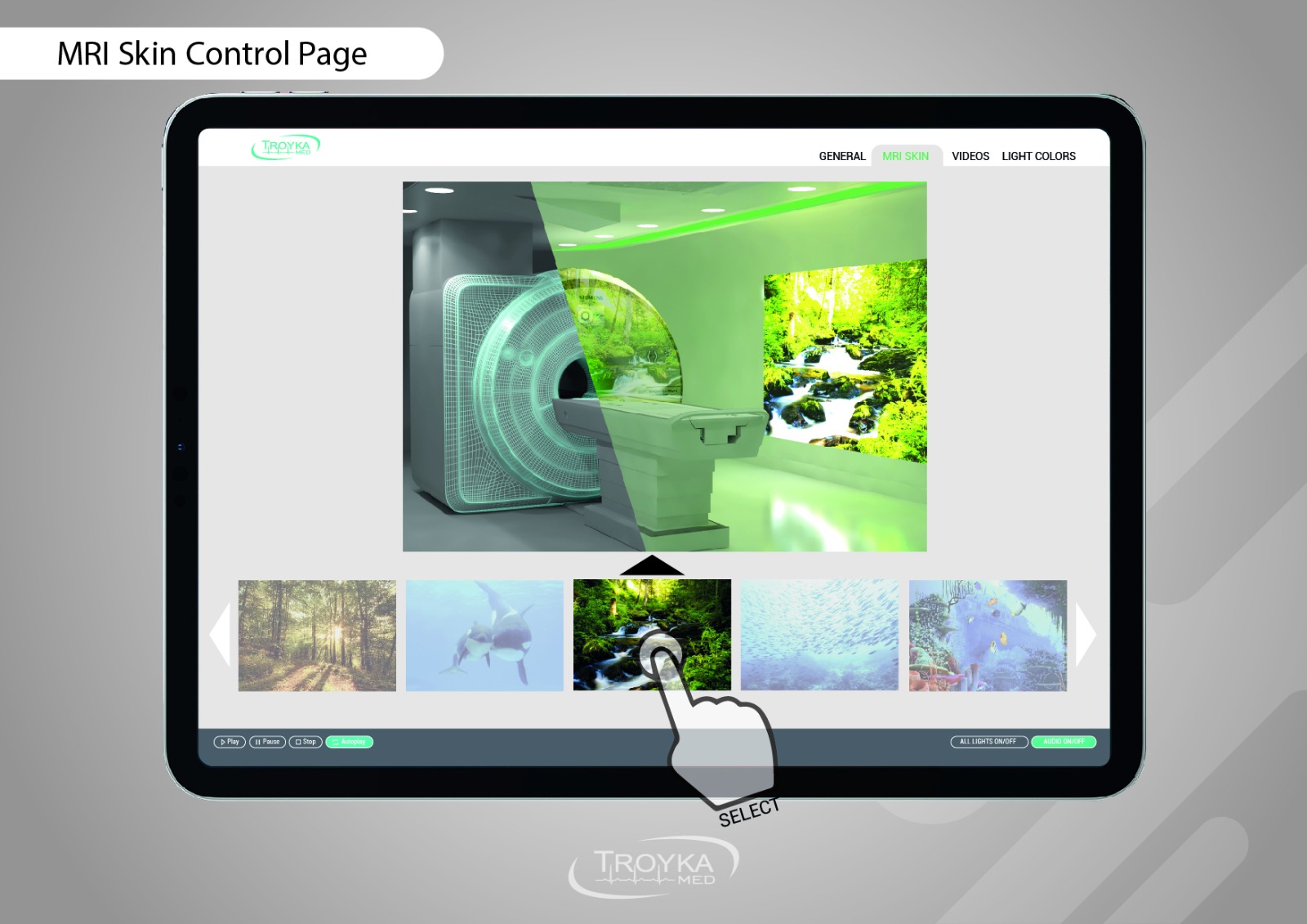

Ambiance Software
Real-time media integration playback
Over 250 animations, videos and images to choose.
Run LED monitor, projector, room ambient sound, headset sound and LED lights dynamically by the click of the button of the touch screen.
Custom developed media software and hardware

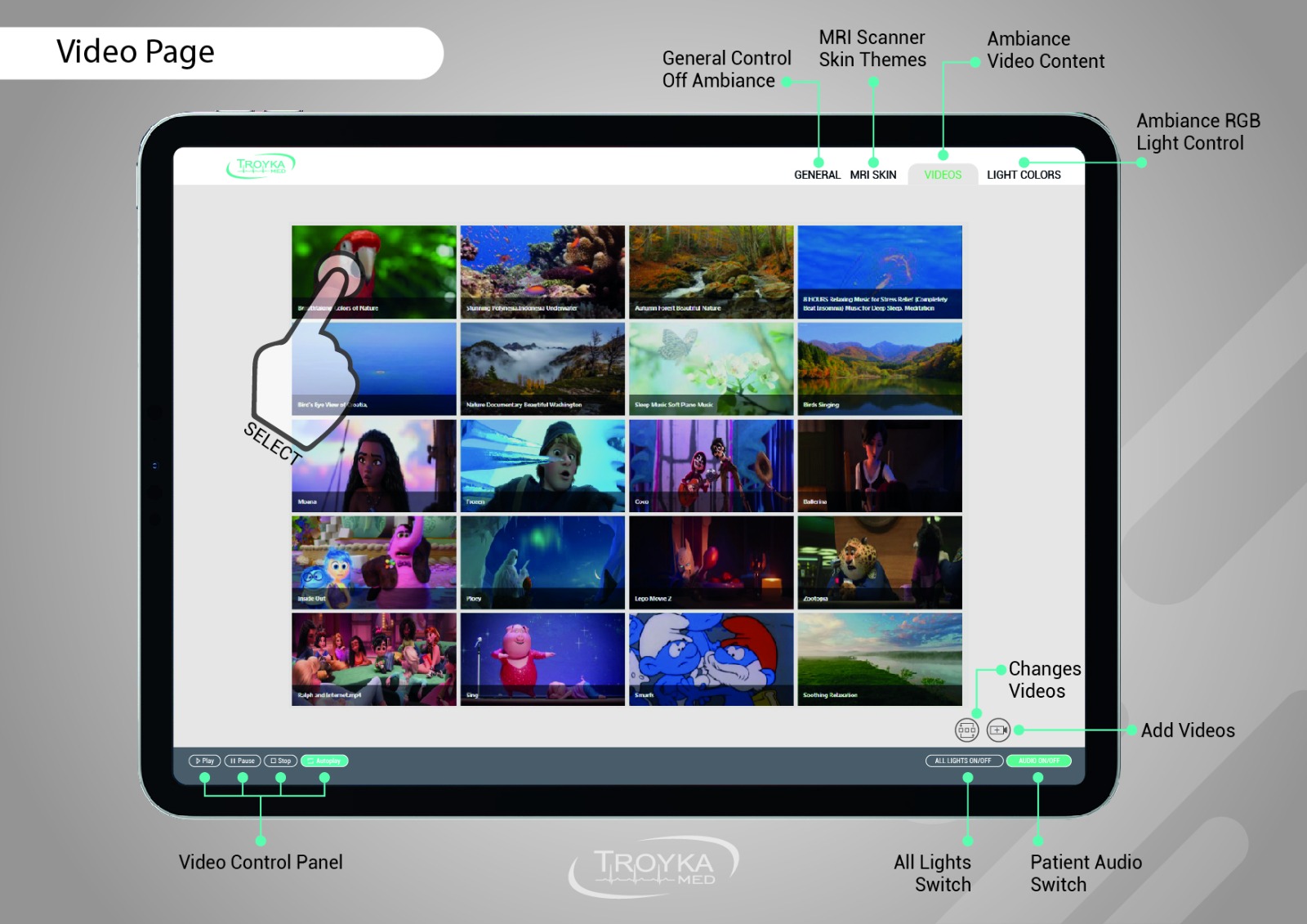

The wireless tablet interface for easy patient interaction
Integration with DVD and other media streaming devices.
Real-time streaming of patient experience content

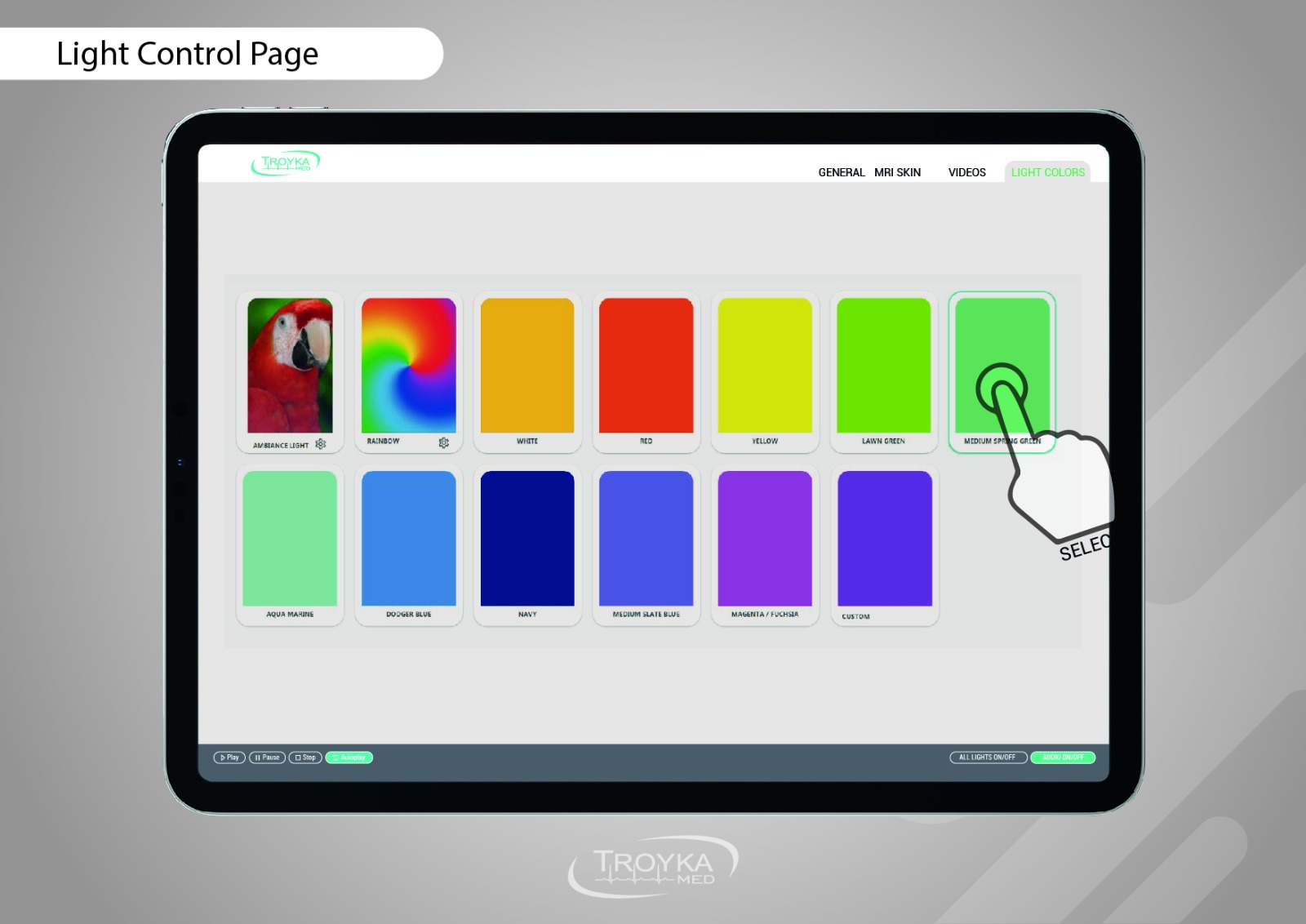

The software runs an algorithm which real-time analyze the video on the screen, find main RGB color code and stream it to the LED RGB light.
Brightness (Lumens): 3200
Resolution Type: 1080p
Resolution: 1920×1080 Full HD
Color Contrast: 30.000:1
Throw Distance: 4.5 – 5.1 ft
Throw Ratio: 1.2~1.6
Display Size (in.): 30 – 300 in.
Aspect Ratio: 16:9
Connection: Fiber-optic (LC-Type)
Power: 100~240VAC (Auto Switching), 50-60Hz
Light Source Life, Normal (hours): 4500
Light Source Life, Eco-Mode (hours): 7500
Internal Speakers: 20 W
30 m RGB LED lights V:24, W:14,4/m
Color Range 1 Million
Case Aluminum
MRI Room Camera
Resolution 1920×1080 2MP
Lens support 2.8-12mm VF
IR Led – IR Cut 36 Led / 25 meter – Automatic
Standards AHD
Operating voltage DC 12V / 1A
Minimum lightning 0.01Lux@; F1.2/AGC ON
Electronic Parameter 1/25s;1/100,000s
25fps @1080p – 30fps @1080P
High speed, long distance, real-time transmission
Full HD and standard definition switch
Day/night (ICR), 3D-DNR,
MRI LED Monitor
Diagonal dimension: 32″
Panel Type: 60 Hz
Resolution: 1920 x 1080 (16:9)
Pixel Spacing: 0,12125 (Y) x 0,36375 (D)
Effective Screen Size: 698,4 (Y) x 392.85 (D)
Brightness: 350 nit
Contrast Ratio: 5000:1
Viewing Angle: 178:178
Reaction Time: 8 ms
Display Color: 16,7 M
Color Gamut: 72%
H-Scanning Frequency: 30 ~ 81 kHz
Maximum Pixel Frequency: 148,5 MHz
V-Scanning Frequency: 48 ~ 75 HZ
Dynamic Contrast Ratio: 50000:1
Fiber Optik Extender
Input Signal HDMI
Electricity Connection HDMI
Optical Connection SC
Max Data Transfer Rate 1.65Gpbs
Max Data Transfer Distance 20 km
EMI Interface Unit
Voltage 90 – 250 VAC
Frequency 50/60 Hz
Fuse T 3.15A
Power Consumption ~ 120 VA
Dimensions 25 x 25 x10 cm
Optical Input / Output Single SC-Connector
Working Conditions
Storage Temperature -10, 90 °C
Working Temperature 0, 50 °C
Humidity %10, %90
Panel Surface Temperature 65 °C
Static Magnetic Field Max 3 Tesla
Working Time 30.000 hours
MRI Compatible Sound System
Sound Amplifier
Working Power 60 Watt
Internal Speakers 2 x 10 Watt
Inputs 2 x Aux, Microphone, USB Flash Disk
Mute Circuit Yes
Dimensions 31 x 26 x 10 cm
Characteristic Uni-direction
Frequency Range 80-12000 Hz
Impedance 600Ω ± 30%
Sensitivity -72dB ± 3dB
Cable 4m
Weight 811g (Kablosuz)
Case Die-cast zinc
MRI Speakers
Frequency Range 0,8kHz – 20kHz
Sensitivity 93dB @1m/1W
Max Power Capacity 100 W
Max Working Power 400 W
Typical Impedance 0,8 µF Impedance
Weight 214,4 g
